Nessetal Bridge
Ebenheim, Thuringia, 2010
![](https://sp-ao.shortpixel.ai/client/to_webp,q_glossy,ret_img/https://www.pul-ingenieure.de/wp-content/uploads/2015/04/02A021-Nessetalbruecke-03-1200x800.jpg)
![](https://sp-ao.shortpixel.ai/client/to_webp,q_glossy,ret_img/https://www.pul-ingenieure.de/wp-content/uploads/2015/04/02A021-CIMG1202-1200x800.jpg)
![](https://sp-ao.shortpixel.ai/client/to_webp,q_glossy,ret_img/https://www.pul-ingenieure.de/wp-content/uploads/2015/04/02A021-CIMG1199-600x800.jpg)
![](https://sp-ao.shortpixel.ai/client/to_webp,q_glossy,ret_img/https://www.pul-ingenieure.de/wp-content/uploads/2015/04/02A021-CIMG1292-600x800.jpg)

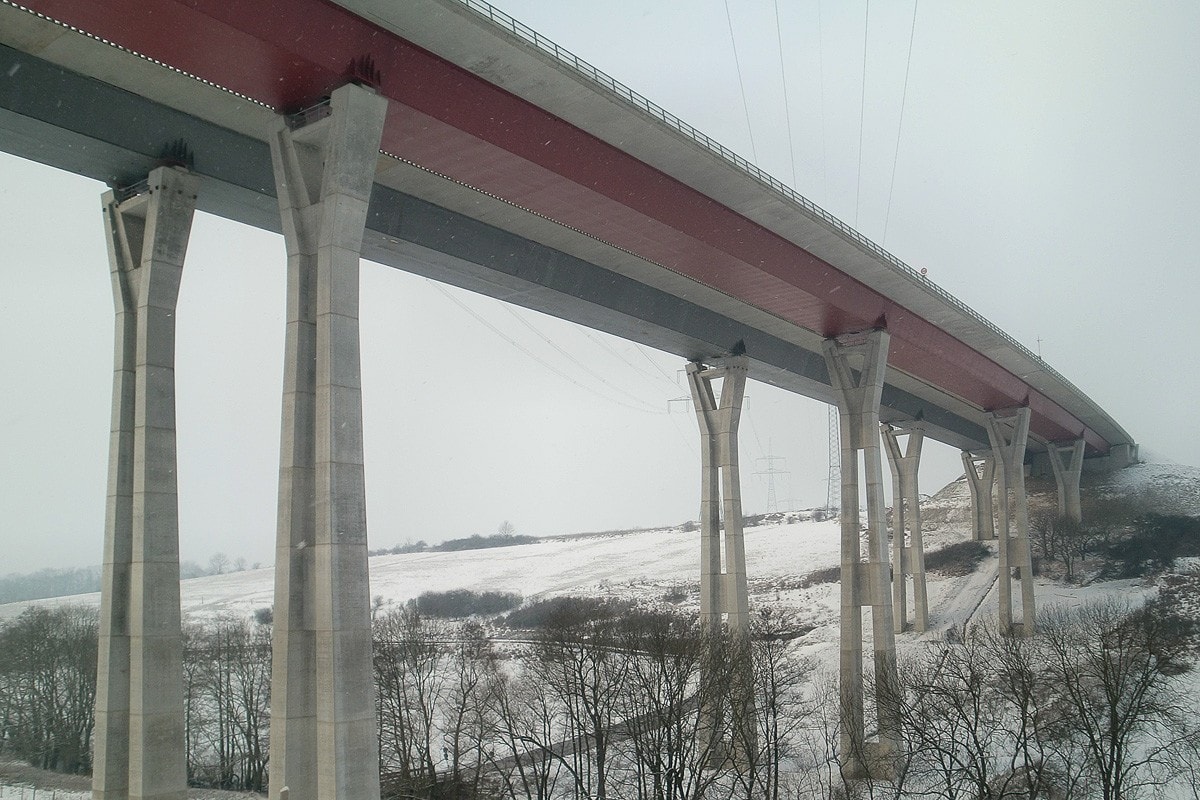

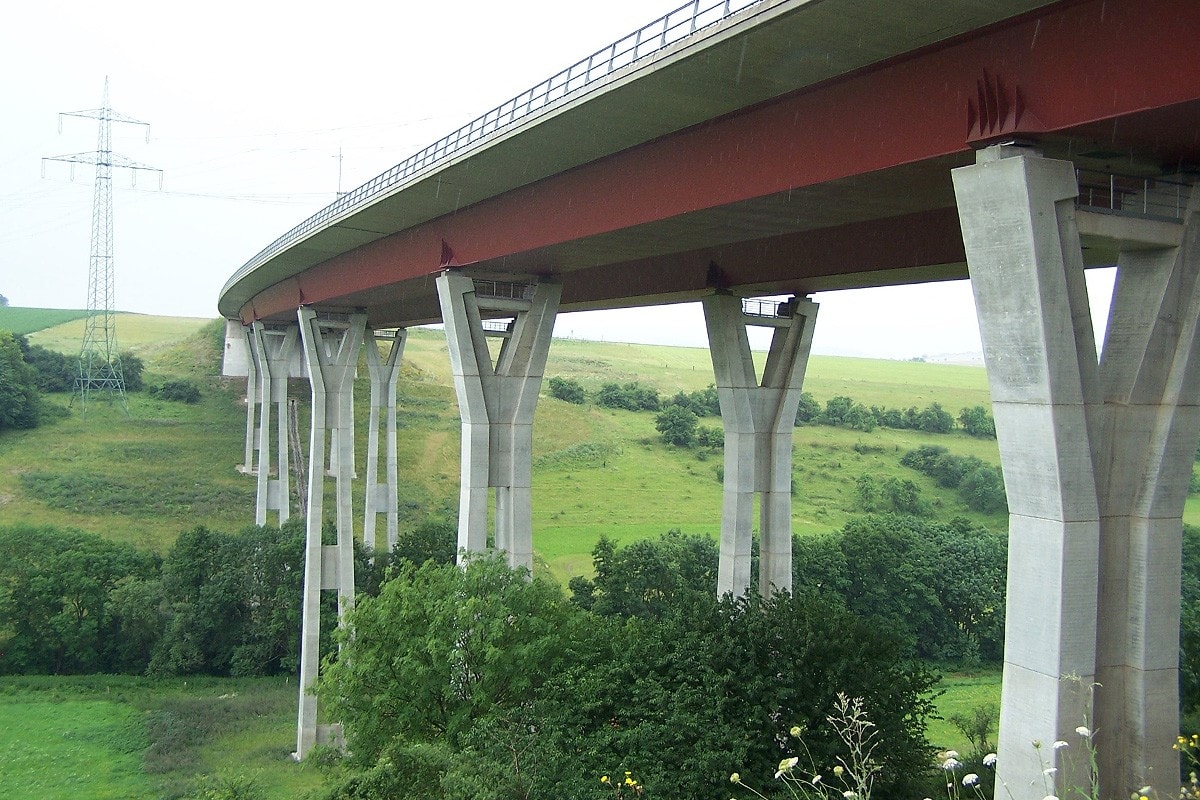

Considering the beautiful valley of the Nesse, the geometries of the bridge and its supports was a special feature of this bridge design. The bridge spans vary accordingly to the valley depth, such that the ratio bridge height / bridge span remains almost constant.

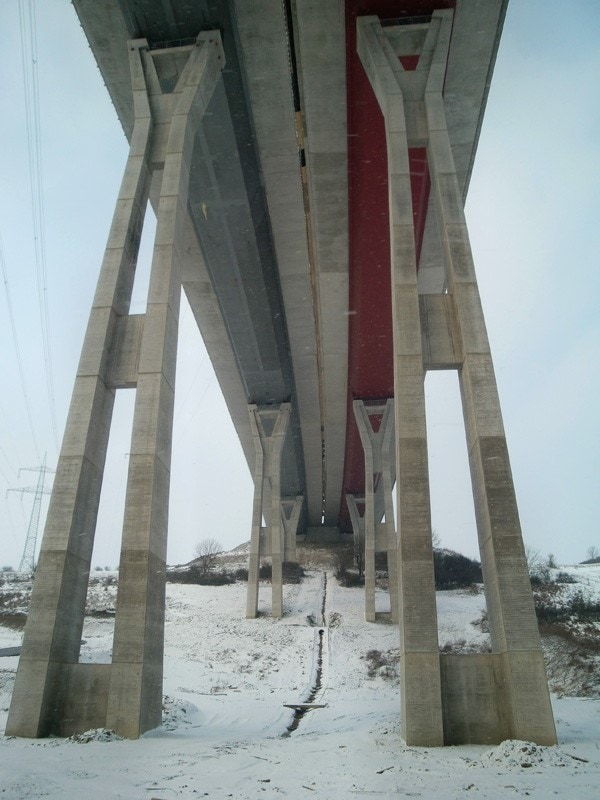

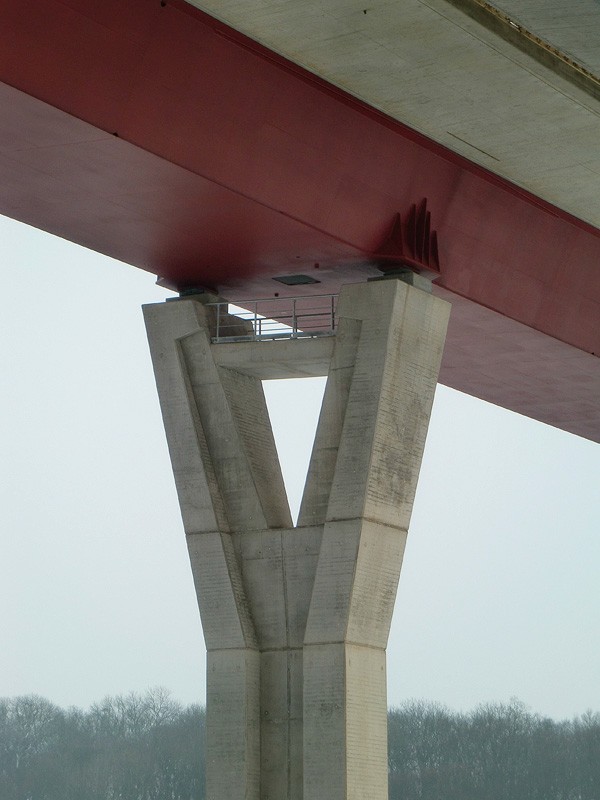

When designing the bridge pillars, several closed and dissolved shapes were concerned. A portal frame type came to construction, with the pillars being inclined versus their center and the pillar head being adjusted to functional requirements.
