Neckartal cycle path bridge
Kirchentellinsfurt, 2020
![](https://sp-ao.shortpixel.ai/client/to_webp,q_glossy,ret_img/https://www.pul-ingenieure.de/wp-content/uploads/2020/03/20211031_134830-1200x675.jpg)

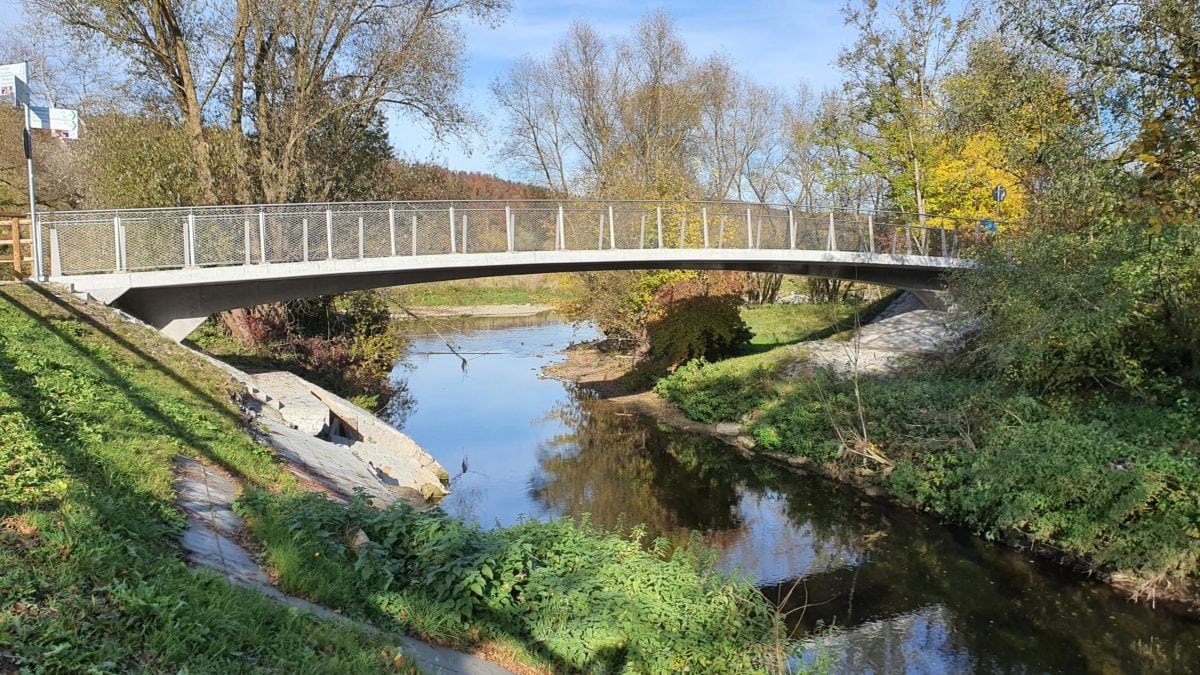

As part of the Neckartal cycle path, the bridge crosses the Echaz shortly before it flows into the Neckar, approximately at right angles and with a straight layout. The span is approximately 24.00 m with a total length of 29.10 m. The width between the railings is 3.50 m. With a construction height in the middle of the bridge of 40 cm, the single-web T-beam spans 90 cm into the abutments. The frame bridge is founded on pillars. The deep foundation consists of 7 reinforced well pillars under each abutment, diameter 1.20 m, pillar length approx. 4.50 m.
